| Place of Origin: | China |
|---|---|
| Brand Name: | NJMKT |
| Model Number: | MKT-CFM |
| Minimum Order Quantity: | 50 square meters |
| Price: | $3.50 - $4.50/square meters |
| Technics: | Woven | Product Type: | Carbon Fiber Fabric |
|---|---|---|---|
| Width: | 47/48" | Pattern: | SOLIDS |
| Supply Type: | Make-to-Order | Material: | 100% Carbon Fiber |
| Style: | Plain | Feature: | Abrasion-Resistant |
| Use: | Industry | Weight: | 300g |
| Thickness: | 0.167mm | Applicable To The Crowd: | None |
| Product Name: | Carbon Fabric |
Carbon fiber fabric carbon fiber sheet /Unidirection/ For reinforcement/ 200g 300 600g/ 3600 Gpa

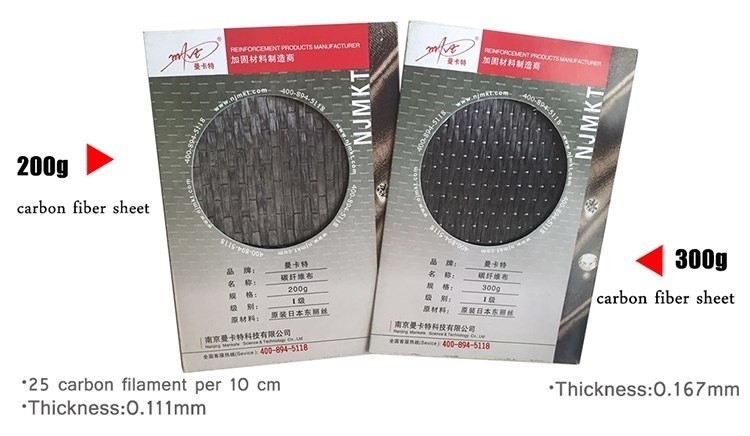

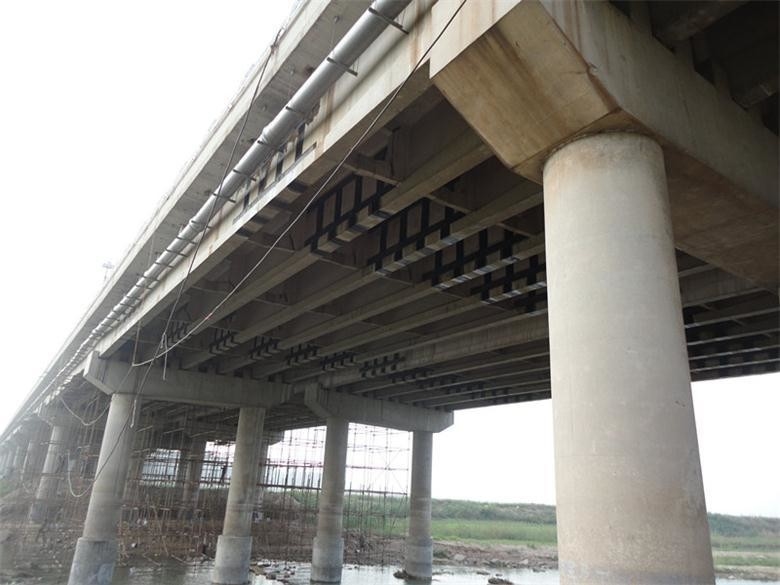

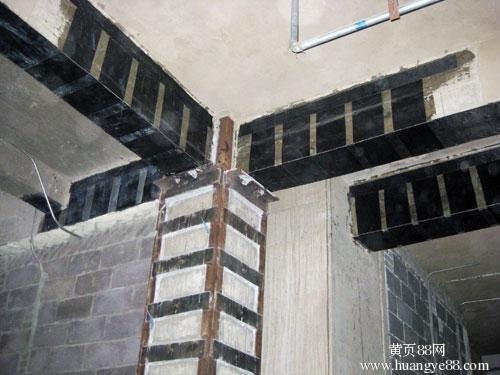

NJMKT carbon fiber sheet is an uni-directional carbon fiber reinforced material made by imported carbon fiber filament. It has two kinds of thickness of 0.111mm (200g) and 0.167mm (300g), and many kinds of width: 100mm, 150mm, 200mm, 300mm, 500mm and other special width requirements, widely used for tensile and seismic reinforcement of structural components. And it can be regarded as carbon fiber composite material when used with MKT-carbon fiber impregnation adhesive, which is suitable for reinforcement of concrete and wood structure, and has reached the requirements of "Reinforced Concrete Structure Design Code GB50367-2006", This product can effectively improve bearing capacity of components, seismic performance and durability.
Advantages:
1. Imported carbon fiber filament, excellent smoothness, easily to be cut according to your desired shape regularly
2. High tensile strength of 4-8 times of ordinary steel
3. Anti-acid and alkali, corrosion resistance, suitable for any harsh environment
4. Excellent performance of winding and wrapping for various types of reinforcement, such as curved surface, strange-shape components, etc.
5. Light weight, low density, 23% of steel material, no increase of self-weight or section size to components.
Key features
Light weight, easy for construction, low density, 23% of steel material, no increase of self-weight or section size to components
This flexible sheet can easily be cut according to your desired shape and have close adhesion with reinforced concrete surface, suitable for extensive shape structures
Small thickness, easy to overlap, excellent performance of winding and wrapping for various types of reinforcement, such as curved surface, strange-shape components, etc.
High tensile strength and flexibility, it can achieve the same effect of reinforced steel plate
Anti-acid and alkali, corrosion resistance, suitable for any harsh environment
The matching epoxy resin adhesive (suggested our factory manufactured carbon fiber impregnating adhesive) has good permeability, easy installation and short construction period
Non-toxic, non-irritating odor, environmentally safe, operation can be done in living situation
High tensile strength of 4-8 times of ordinary steel.
NJMKT promise to meet the technical requirements of the following GB50367-2013 "Design code for concrete structure reinforcement" and GB50728-2011 "Technical code for safety identification of reinforcement materials for engineering structures".
