| Place of Origin: | China |
|---|---|
| Minimum Order Quantity: | 1000 pieces |
| Price: | $0.20/pieces 1000-9999 pieces |
| Packaging Details: | Standard export package |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Main Raw Material: | Epoxy | Usage: | Construction, Curtain Wall |
|---|---|---|---|
| Material: | Stainless Steel 304, 316 | Application: | Curtain Wall |
| Approved For: | Granite Marble, Ceramic,plate | Packing: | Pallet |
| Delivery Time: | 15 | Certificate: | ETA |
| Port: | Shanghai Port | Quality: | CE |
| Payment Terms: | TT 30% Deposit | Port: | Shanghai |

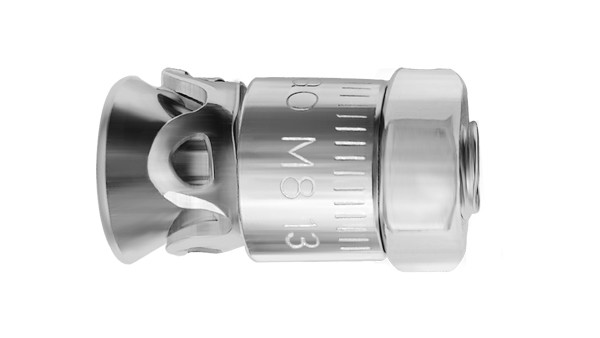

Panel anchor plays an important role in service life and safety of curtain wall anchorage. NJMKT undercut anchor for stone adopts stainless steel material to meet the required tensile and shear strength; simple structure, convenient operation and installation, no need of any adhesive, can safely and quickly installed in controlled height, and application with reveal angle or other attachment parts.

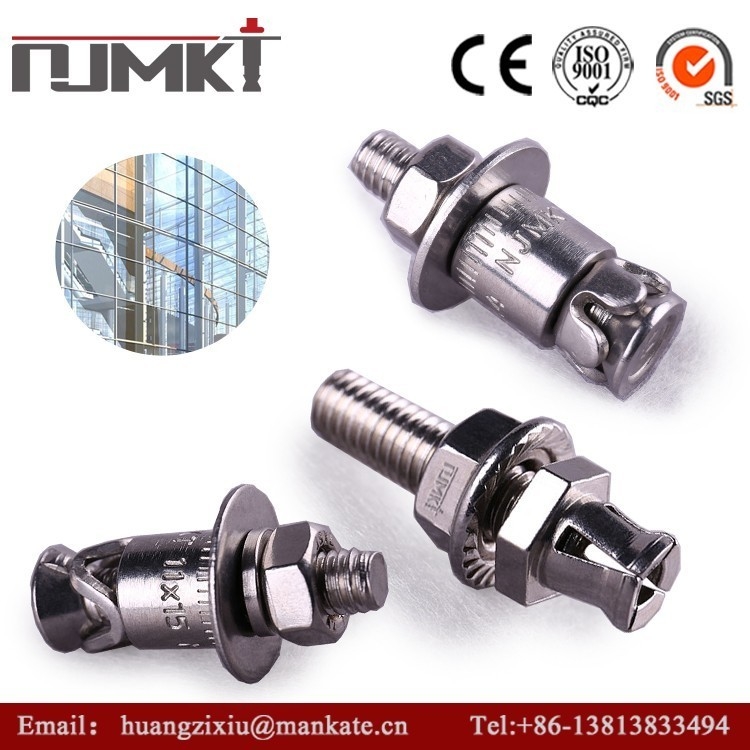

Our company manufactures various customized anchor, such as: hammer-in panel anchor (flush/stand-off fixing), spin-in panel anchor, lotus-ring panel anchor, seismic panel anchor, marble panel anchor, etc.
Consist: high strength anchor rod, spacer sleeve, Z-type pressure ring, spring washer, nut
Material: A4 stainless steel, higher ultimate load capacity than ordinary standard, and high corrosion resistance steel A4-70 (316L) can be applied in harsh environment, such as, splashing seawater environment, swimming pools with chlorine, industrial environment with SO2, etc.
Application: suitable for fixing plate of buildings outside maintenance construction, especially natural stone decoration plate, and also ceramic plate, marble plate, granite, microcrystalline stone, crystal glass, man-made fiber board, etc.
Advantages
Step 1 Position: Drill the hole per specifications and fix the position on panel using specialized equipment.
Step 2 Hole drilling: Drill the hole according to requirement to proper depth and diameter, pay attention to the deviation of hole depth, diameter and hole reaming.
Step 3 Hole forming: Drill the hole according to requirement to proper depth and diameter, pay attention to the deviation of hole depth, diameter and hole reaming.
Step 4 Install anchor sleeve: Insert the anchor sleeve into the hole.
Step 5 Install panel anchor: Insert the anchor into the hole.
Step 6 Screw up: Tighten the anchor to the end of the hole.
